Voltage Transformer Burden UCL2281
    Publish time 2021-06-18 17:03

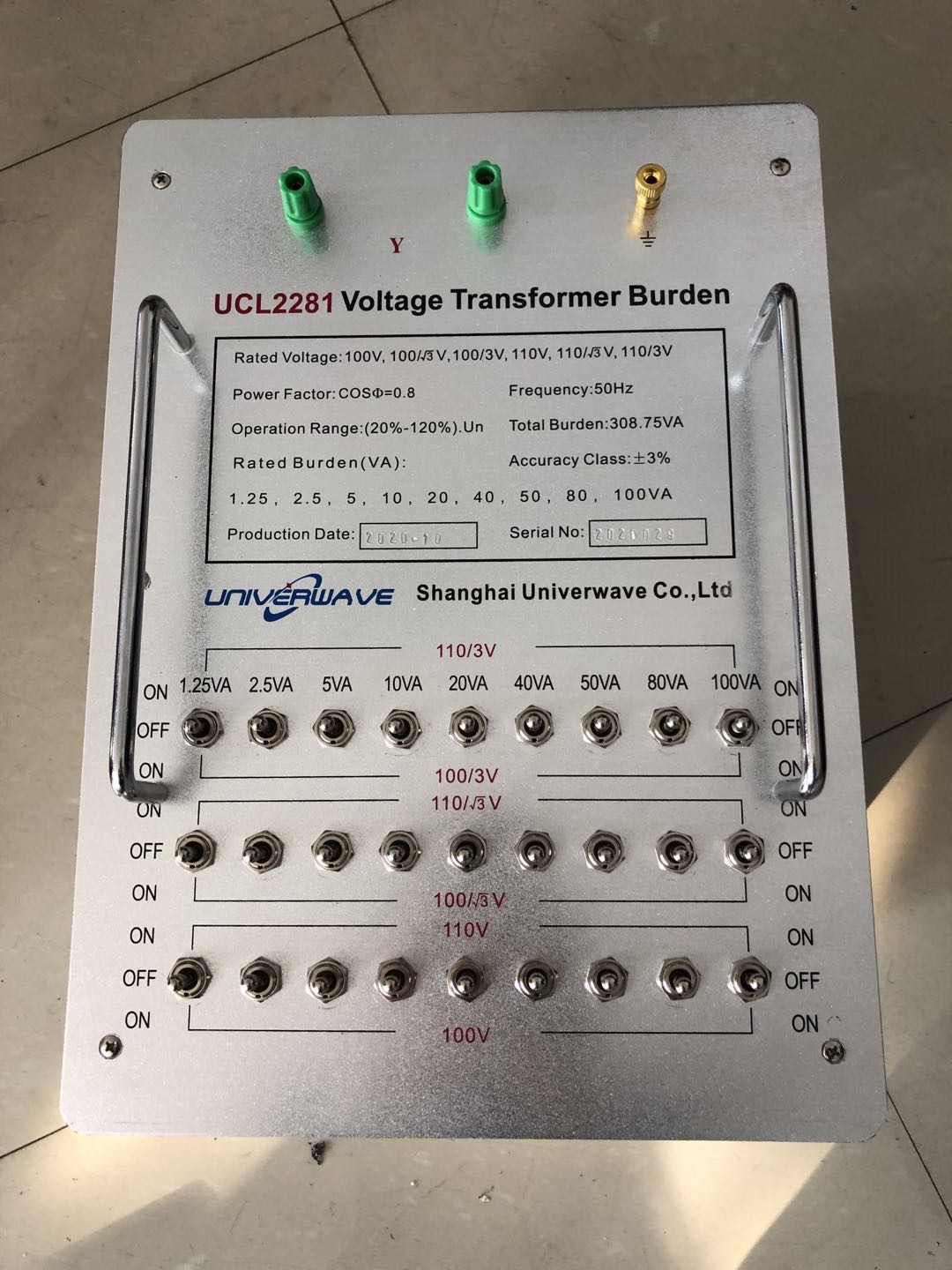

Voltage Transformer Burden UCL2281

Usage

The Voltage Transformer Burden is applicable to voltage transformer accuracy testing as secondary load of test object PT, its parallel connection to the secondary winding of test object PT.



Technical Specification(It is for general reference,we can customize it as per user’s request）

Rated Voltage:

100V, 100/√3V, 100/3V

Rated Capacity:

1.25VA, 2.5VA, 5VA, 10VA, 20VA, 40VA, 80VA

Total Capacity:

158.75VA

Accuracy Class:

±3%

Power Factor:

COSΦ=0.8，1.0

Operation Frequency:

50Hz

Operating Range:

(20%-120%) Un

Withstand Voltage:

2000V 1min

Operating Condition:

Temperature: -5 oC ～ +40 oC

Relative Humidity (RH): up to 85% (max 90%)
