Usage

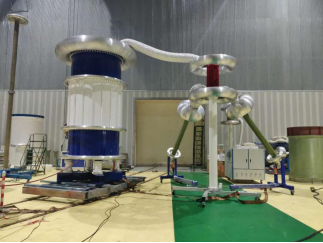

The CTT series water-insulated cable test terminations are used to test extruded insulation HV cables.The termination and water conditioning unit are suitable for the test:

n Partial discharge test

n AC withstand test

n Lightning impulse/Switching impulse voltage test

n Dielectric loss&Tan delta measurement

n Breakdown test



Technical feature

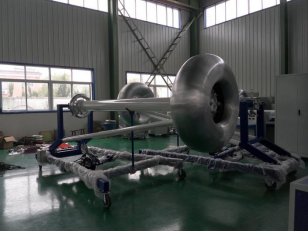

General specification of the water termination



n The termination is suitable for power cable’s delivery test,type test and qualification test

n The termination is designed for indoor use

n The termination consists of 2sets of terminal tubes and one deionizer water conditioning unit

n The termination is suitable for XLPE power cable testing of 500kV and below voltage

n Remote control is available

n Before operating,please make sure every unit is safety earthing

n The termination is removable,convenient for testing

n Deionizer resin can be replaced on site

n There is emergency button,user can press it when emergency occurs to keep safety

n Electric sensor can supervise the temperature,pressure,flow velocity and water electrical conductivity

n Sensor supply 4-20mA signal to feed programmable processor,the operation mode will display on the control panel

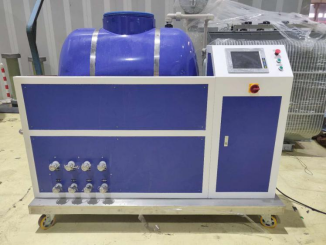

Water conditioning unit parameter

The water conditioning unit is used to remove the heat generated by the current flowing through the water and deionizer the water that circulates through the termination.



n Resistance coefficient of the water in conditioning unit >2MΩ-cm

n When water temperature is higher than 40,the external cooking system will work properly

n When system cannot circulate/work,please check water level,it is designed not working when water level is low
