10A&20A:

Usage

DC resistance measurement of windings is one of routine tests of transformers. Its main purpose is to check whether the connections or mechanical characteristics between windings, and leads are in good conditions, and whether the resistances between windings are balanced, etc., so as to ensure the safe operation of transformers.

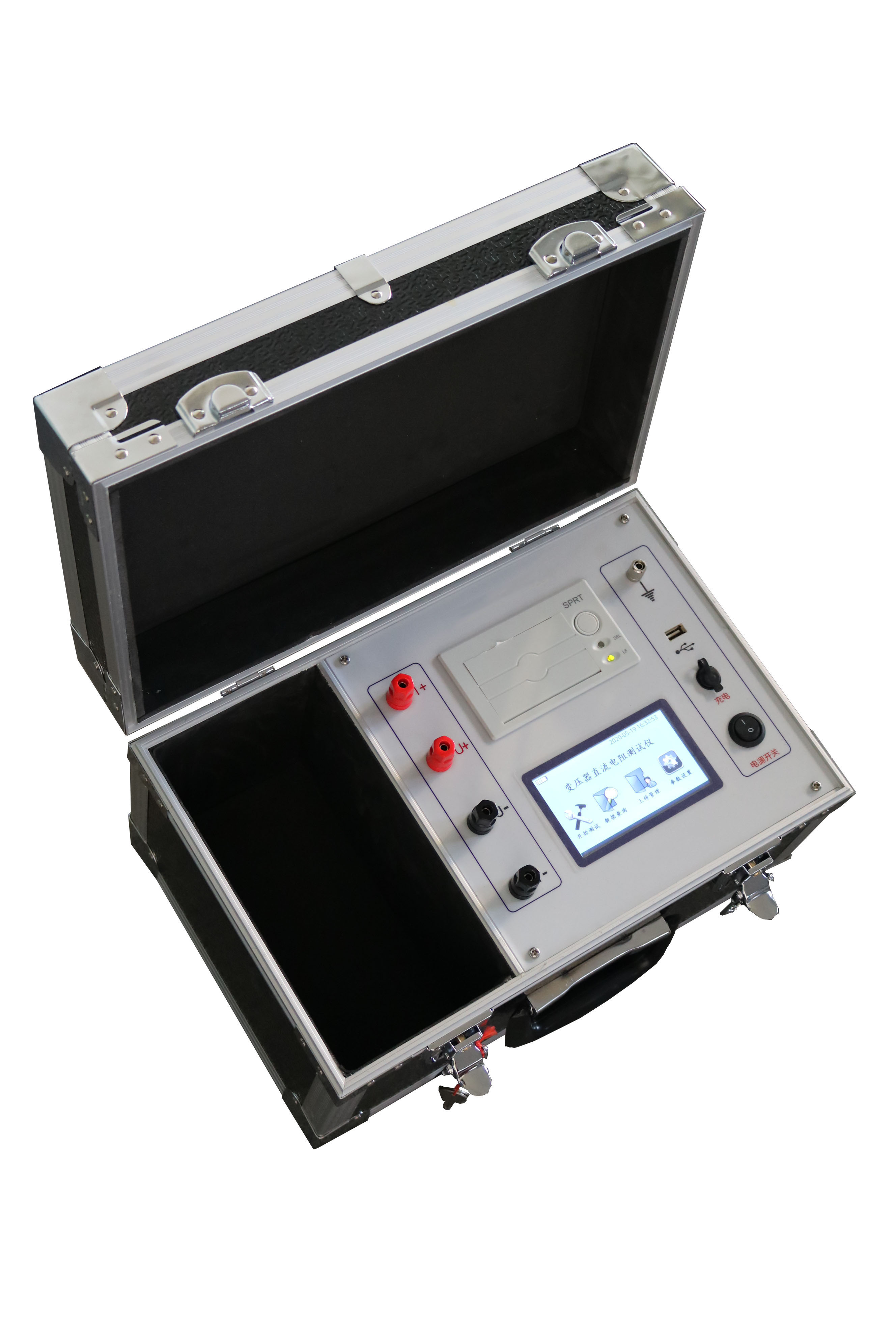

Imported chips and high-speed collectors are adopted for the series transformer DC resistance testers developed and produced by our company as the processing core, so as to control the whole machine, automatically complete the functions of self-calibration, constant current judgment, data processing, resistance value display, etc., and be able to measure the DC resistance of various types of transformers and mutual inductors, greatly facilitating the use of operators.

Feature

n Output current and measuring range: output current: 0-20A, measuring range: 0.1mW-20KW

n Test accuracy: 0.2%, highest resolution: 0.1mW

n The 65K true color liquid crystal display is adopted for the instrument with Chinese menu prompt, which is convenient to operate.

n With large capacity storage function, it can store 2000 test records.

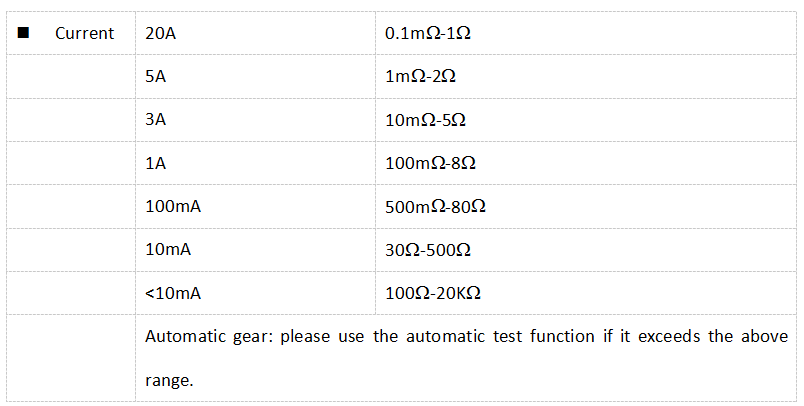

n Operating power supply: AC220V±10﹪

n Operating temperature: ﹣10°C~40°C

n Operating humidity: ambient humidity < 80%RH.

n Weight of instrument: 3㎏.

50A:

Usage

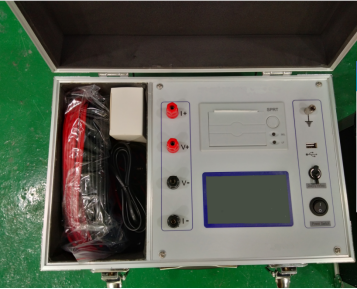

DC resistance of transformer is a necessary test item in factory test, installation, overhaul change of tap switch, handover test and preventive test of power department in transformer manufacturing. It can check the welding quality of the winding joint and whether there is a winding short circuit between turns. It can also check whether the contact of each position of the electric voltage tap switch is good, whether the actual position of the tap switch is consistent with the indicated position, whether the lead wire is broken, and whether there is a broken strand of multiple conductors wound around. In order to meet the need of rapid measurement of transformer DC resistance, the 50A DC resistance tester developed by our company. The instrument adopts new power supply technology, which has the characteristics of small volume, light weight, large output current, good repeatability, strong anti-interference ability and perfect protection function. The whole machine is controlled by high speed single chip microcomputer, with high degree of automation, automatic discharge and discharge alarm function. The instrument has high precision and easy operation, which can realize the rapid measurement of direct resistance of transformer.

Feature

■·Whole instrument controlled by high speed SCM, high automatic degree and simple operation.
■·The instrument adopts advanced power supply technology, with multiple current position, test range is wide, suitable for testing DC resistance of large and medium size transformer.
■·Has a complete circuit protection, reliable.
■·Discharge alarm, discharge indicator clear, reduces misuse.
■·Quick response speed, can be directly converted to load tap switch at measuring state, the instrument automatically refresh data.
■·Intelligent power management technology, instrument is always working at minimum power state, effective energy saving, reduce heat.
■·320 x240 matrix of ultra small pixel 65K true color LCD.
■·With calendar clock and power storage, can store 1000 groups data, can be check at any time.
■·With RS232 and USB interface, computer communications and U disk storage.

Technical Indicators

■·Output current<5mA 、1A、2.5A、5A 、10A、20A 50A

50μΩ～400mΩ(50A)

■· Range：100μΩ～1Ω(20A)

500μΩ～2Ω(10A)

1mΩ～4Ω(5A)

2mΩ～8Ω(2.5A)

5mΩ～20Ω(1A)

10Ω～20KΩ(<5mA)

■· Accuracy：±(0.2%+2 Readings)

■· Operating temperature：0~40℃

■· Ambient humidity：≤90%RH，(non condensed)

■· Size:400mm*225mm*350mm.

■·  Instrument weight :13kg, wiring case:5kg.
