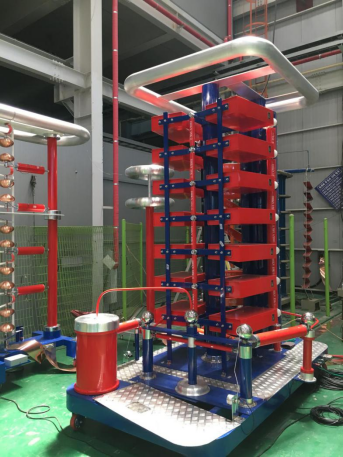

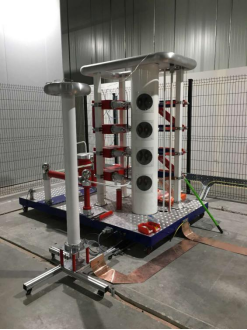

The impulse voltage generator is mainly used to carry out lightning impulse full wave,switching wave,multiple chopping gap,steep wave and other special wave tests on power equipment.All is compliant with GB and IEC standard.
Applications
n Power transformer
n Power cable
n Instrument transformer(current transformer/voltage transformer)
n HV insulator(Polymer insulator/Glass insulator/Porcelain insulator)
n HV switch/GIS(Gas insulated switch)/Switchgear/Switchboard
n HV insulation material
n Arrester
n Shunt reactors
n Other HV products
System Configuration
n Impulse voltage generator
n DC charging apparatus
n Week damped capacitive divider
n Automated multiple chopping gap
n Glaninger circuit
n Shunt
n Steeping wave device
n Automatic control system&measuring system
The stage energy varies from 5kJ to 30kJ.The total charging voltage range from 300kV to 5400kV.We can also supply the service of upgrade your existing equipment.Stage voltage has three types:100kV,150kV,200kV.The user can also select the top electrode structure.We can also provide the customized service according to your test object.
